Name: Direct Supply Stainless Steel Heat Exchanger with Plate Gasket Plate Heat Exchanger, Corrugation Spacing of Heat Exchanger Plate
Brand: Jiangsu Dieyao International Trade Co., Ltd.
Availability: InStock

Home Products Plate For Heat Exchanger

Direct Supply Stainless Steel Heat Exchanger with Plate Gasket Plate Heat Exchanger, Corrugation Spacing of Heat Exchanger Plate

Product Details:

Contact Now

Detailed Product Description

视频出厂验货:	可提供	机械测试报告:	不可用
核心组件:	PLC, 风扇叶片, 散热器	原产地:	Jiangsu, China
品牌:	DIEYAO	结构:	管式散热器
流体速率:	最大流量: 140 M ³ / H	最大工作压力:	1.0 Mpa 1.6 Mpa
电压:	220V	尺寸(长×宽×高):	1069 X 470mm
保修期:	1年	工作温度区间:	-196 ~ + 200 ℃
核心卖点:	安全性高	材质:	铝
重量 (KG):	4

Company Introduction

Jiangsu Dieyao International Trade Co., Ltd. has emerged steadily in the industry since its establishment in August 2 0 2 3. It is located in Taizhou City, Jiangsu Province with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction As an emerging enterprise, we rely on the strong support of our family business group, which provides us with solid backing and unlimited possibilities. Our cooperative factories are all core members of the family business group, with a wide range of products covering multiple fields such as heat exchangers, washing equipment, commercial machinery equipment and accessories. We deeply understand that quality is the lifeline of an enterprise, so we always adhere to the principle of quality first, ensuring that every product reaches the international advanced level. Jiangsu Dieyao International Trade Co., Ltd. provides customers with one-stop solutions with professional and efficient services. We look forward to working together with friends from all walks of life to create a brilliant future. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements, We will provide you with the most professional service. Welcome final users and distributors from all the world contact with us and create success.

^{Detachable plate heat exchanger}

Factory direct sales, controllable quality, supporting OEM

Product Specifications

Default Material	304/316L NBR/EPDM
Type of connector	customized
Brand	DIEYAO
origin	Jiangsu
Default Port	Shanghai
Verify drawings	must

Threaded interface

Due to structural size limitations, flanges cannot be installed, or threaded interfaces are commonly used in food grade heat exchangers due to their tight connections, which can meet hygiene requirements and prevent medium leakage from contaminating food

Lap Joint

It can ensure that the part of the medium flowing through is made of titanium material to prevent corrosion during plate replacement, and also utilize the good mechanical and processing properties of 316L flanges to ensure the reliability and stability of the connection

Flange interface

Its advantages are firm connection, good sealing, and the ability to withstand high pressure and temperature, making it suitable for detachable plate heat exchangers under various working conditions

Quick connect interface

This connection method has the characteristics of easy and fast installation and disassembly, which can greatly shorten the installation and maintenance time of the heat exchanger. At the same time, its sealing performance is good, which can effectively prevent medium leakage and is commonly used in work environments with high hygiene requirements

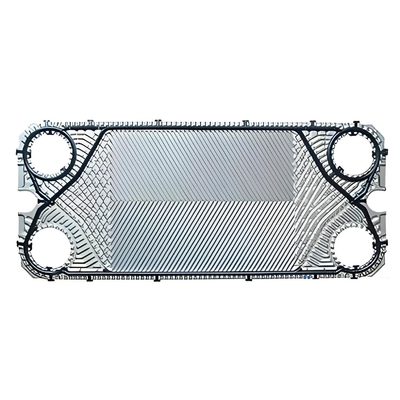

Herringbone ripple

The supporting points of the herringbone corrugated plate are evenly distributed, and the cross-sectional changes of the flow channel are complex, which can form a network of complex and variable flows. It is easy to form turbulence, has high heat transfer efficiency, and good pressure bearing capacity

Horizontal flat ripple

Compared to herringbone ripples, the heat transfer efficiency is lower, the fluid resistance is smaller, and the pressure bearing capacity is also slightly lower

Oblique ripple

It can cause the fluid to generate strong disturbances and enhance the heat transfer effect. It has good applications in some
specific working conditions.

Spherical corrugation

Can increase the turbulence degree of fluid, improve heat transfer efficiency, and also have a certain compressive strength.

stepped corrugation

Help to form complex flow channels, promote the mixing and heat transfer of fluids, and is suitable for occasions with high requirements for heat transfer.

H/M/L channel plate configuration

Big angle: refers to the angle between the peaks and valleys of ripples or folds that is greater than 90 degrees. This design
usually provides a higher number of flow path intersections, making the flow velocity changes more pronounced, thereby helping to
improve the heat transfer coefficient and achieve higher heat transfer efficiency. However, it should be noted that in the
presence of more impurities or precipitates in the fluid, large angle plates may be more prone to blockage, reducing heat transfer
efficiency. Small angle: refers to the angle of ripples or folds being less than 90 degrees. Compared to large angle plates, small
angle plates have a greater distance between the ripples, making them less prone to clogging. Meanwhile, small angle plates may
exhibit better mechanical strength, with stronger resistance to vibration and fatigue. However, its heat transfer efficiency may
be slightly inferior to that of large angle plates.

Increase the angle by a large angle

1. High heat transfer efficiency 2. High flow resistance

Large angle plus small angle

1. Medium heat transfer efficiency

2. Medium flow resistance

Small angle plus small angle

1. Low heat transfer efficiency

2. Low flow resistance

Material Classification

Conventional custom materials for detachable heat exchangers

Plate material	Suitable for fluid
stainless steel(SUS304.316)	Purified water,river water,edible oil,mineral oil
TI，T-Pd	Sea water, salt water and salt chemicals
20Cr,18Ni6Mo(254SMO)	Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution
Ni	High temperature, high concentration caustic soda
HASTELLOY（C276，D205，B2G）	Concentrated sulfuric acid, hydrochloric acid and carbonic acid

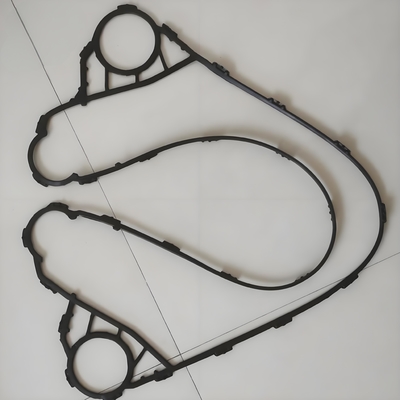

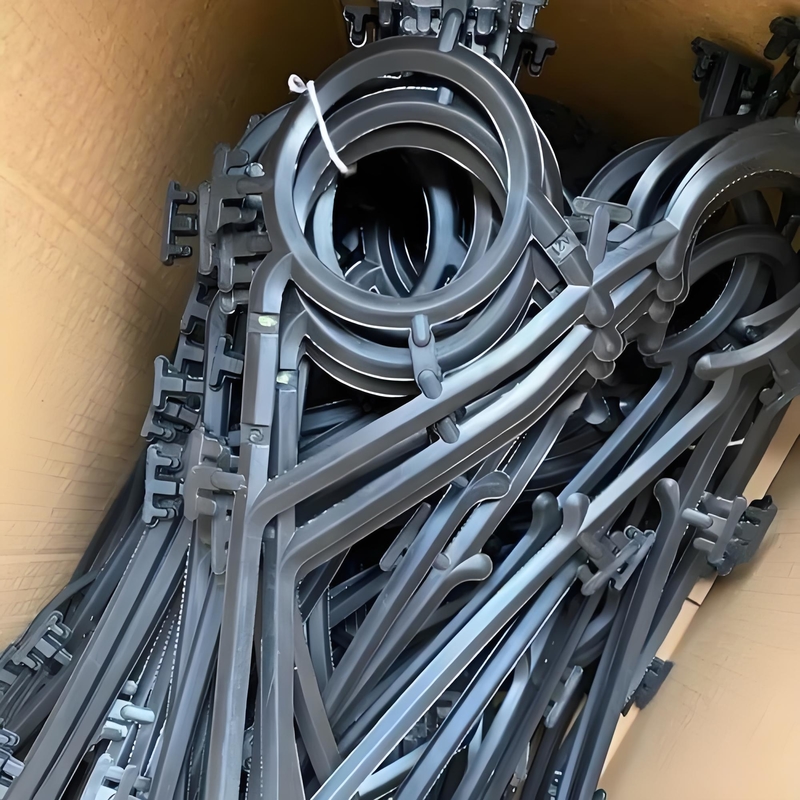

Customized material for detachable plate heat exchanger gasket

Gasket material	Temperature rang（℃）	Corrosion resistance
NBR	-20~110	It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution.
HNBR	-20~165	It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution.
EPDM	-50~150	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.
H-EPDM	-20~165	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.
S-EPDM	-20~130	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.
Viton	-40~180	Excellent corrosion resistance. It is suitable for high concentration inorganic acid-base and polar chemical medium, mineral oil, silicone oil and silicone resin, animal and vegetable oil, chain hydrocarbon (propane, butane, mineral oil, etc.), hydrocarbon chloride, fuel, non gas resistant substance, etc.
Chloroprene rubber(CR)	-50~100	It is resistant to dilute non oxidizing acid and alkali.
Silicon	-65~230	Corrosion resistant to dilute acid, alkali and brine.
Compressed fiber（AFM34 SIL-4400）	260	Oil, water and vapor (up to 160 ℃), gas, salt solution, fuel, ethanol, organic / inorganic acids, refrigerants, hydrocarbons.
PTFE	-200~260	It has excellent corrosion resistance. Except molten metal lithium, sodium, potassium, chlorine trifluoride, oxygen trichloride at high temperature and liquid fluorine with high flow rate, it can resist all chemical media (including concentrated nitric acid and aqua regia).

5S standardized factory

The 5S standardized factory refers to the 5S management factory, which includes SEIRI, SEITON, SEISO, SETKETSU, and SHITSUKE.The 5S management of the factory aims to create a clear working environment and cultivate good work habits among employees by standardizing the site and objects. The ultimate goal is to improve the quality of people, cultivate good work habits, and ultimately achieve fine and controllable products.

Product application areas

Mainly used in air conditioning systems, regional cooling and heating, refrigeration industries such as chemical, pharmaceutical,food, power generation, and large ships

production line

Energy extraction

chemical plant

power plant

Steel smelting

construction industry

PACKING&TRANSPORT

Transportation and remittance methods

FAQ

Are we a factory

Yes, although this company was established in 2023, we are only a branch of the factory's foreign trade business. The factory has been developing for nine years and we have the strength and experience to receive domestic and foreign customers

Can you give me a sample order?

Yes, we welcome ordering samples to test and inspect quality. Mixed samples are acceptable.

What is the mode of transportation?

Sea freight, air freight, international express delivery, DHL/wire transfer/FedEx/United Parcel Service/express delivery,

Do you have after-sales service for your products?

yes. If you have any questions about the product, please feel free to contact us at any time.

What is the purchasing process

1. Confirm the product model or requirements with me 2. Provide accurate shipping address and confirm trade terms 3. Confirm the drawings and quotation 4. Payment for goods 5. Production after receiving payment 6. Delivery and transportation 7. Assist with customs clearance and wait for receipt of goods 8. Follow up on receiving confirmation and after-sales service
