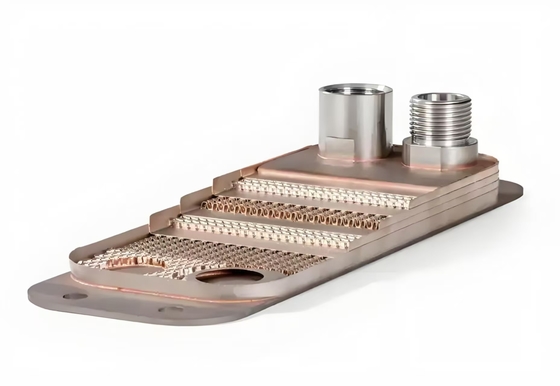

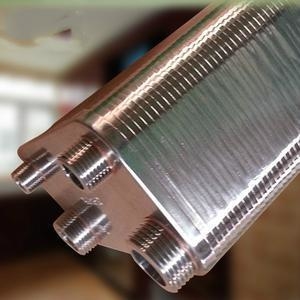

High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition

High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition

High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition
  • High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition
  • High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition
  • High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition
  • High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition
  • High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition
  • High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition
  • High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition
Product Details:
Contact Now
Detailed Product Description
视频出厂验货: 可提供 机械测试报告: 可提供
核心组件: 电机 原产地: Jiangsu, China
品牌: DIE YAO 结构: 板式散热器

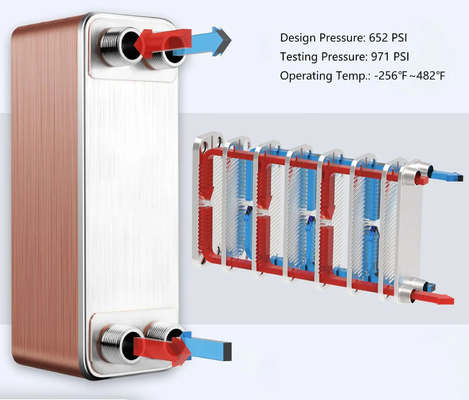

流体速率: 最大流量: 36 M3 / H 最大工作压力: 3.0 Mpa

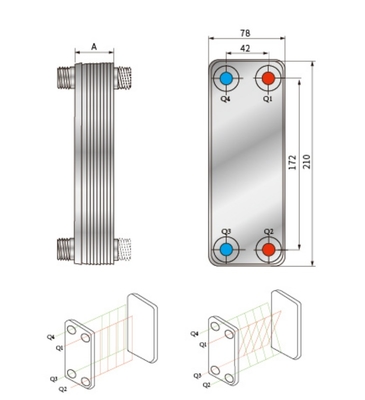

电压: 热负荷高达5kw 尺寸(长×宽×高): 78x210毫米
保修期: 1年 工作温度区间: -196 ~ + 180 ℃
核心卖点: 价格有竞争力 材质: 不锈钢
重量 (KG): 15 板材: SS304/SS316L
钎焊材料: 99.97% 铜 板厚: 0.4mm
填料: 木箱包装 试验: 100% 检查
产品名称: 钎焊板式换热器 产品类型: 水冷冷凝器
应用程序: 制冷部件 描述: 液压油冷却器水冷凝器
中: 制冷剂

High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 0
Company Profile
Jiangsu Dieyao International Trade Co., Ltd. has emerged steadily in the industry since its establishment in August 2 0 2 3. It is located in Taizhou City, Jiangsu Province with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction As an emerging enterprise, we rely on the strong support of our family business group, which provides us with solid backing and unlimited possibilities. Our cooperative factories are all core members of the family business group, with a wide range of products covering multiple fields such as heat exchangers, washing equipment, commercial machinery equipment and accessories. We deeply understand that quality is the lifeline of an enterprise, so we always adhere to the principle of quality first, ensuring that every product reaches the international advanced level. Jiangsu Dieyao International Trade Co., Ltd. provides customers with one-stop solutions with professional and efficient services. We look forward to working together with friends from all walks of life to create a brilliant future. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements, We will provide you with the most professional service. Welcome final users and distributors from all the world contact with us and create success.
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 2

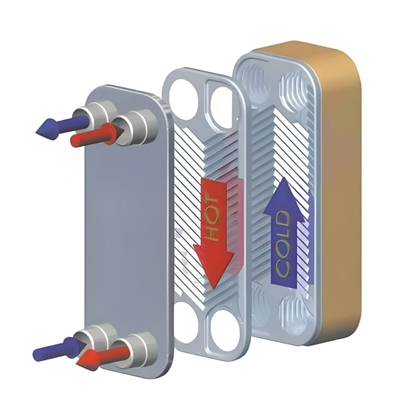

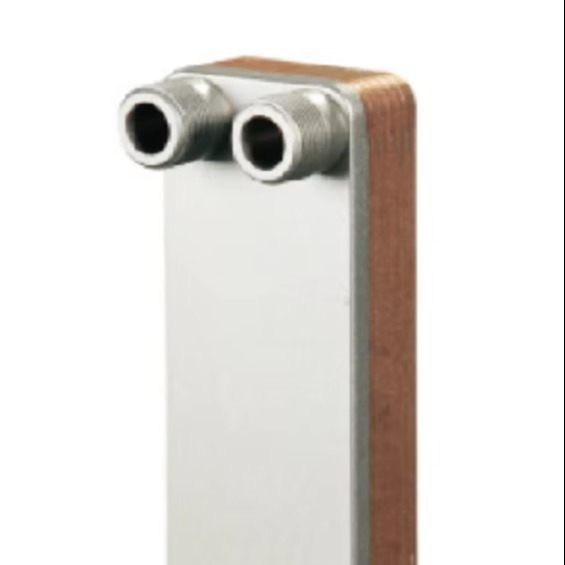

Brazed plate heat exchanger

High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 4
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 6
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 8
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 10
Product Specifications
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 12
country of origin
China
Brand name
DIEYAO
Default packaging
Aviation wooden crate
Default Material
304/316L
Customizable parts
Interface, material
Transport
Default Shanghai Port
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 14
internal thread
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 16
flange
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 18
Butt welding
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 20
Clamp type
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 22
SAE Flange
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 24
External thread
There are several conventional interfaces available. If special customization is required, please refer to the diagram or provide detailed data parameters
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 26

Herringbone corrugated board

With a specific herringbone corrugated shape, it helps to increase the degree of turbulence of the fluid in the channel, thereby improving the heat transfer efficiency.
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 28

Horizontal flat corrugated board

The corrugated shape is relatively flat and horizontal, which may provide different hydrodynamic characteristics in certain application scenarios.
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 30

Tumor shaped plate

With a unique tumor-shaped structure, this structure may help to enhance heat transfer performance or meet specific process requirements.
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 32
H/M/L channel plate configuration
Big angle: refers to the angle between the peaks and valleys of ripples or folds that is greater than 90 degrees. This design usually provides a higher number of flow path intersections, making the flow velocity changes more pronounced, thereby helping to improve the heat transfer coefficient and achieve higher heat transfer efficiency. However, it should be noted that in the presence of more impurities or precipitates in the fluid, large angle plates may be more prone to blockage, reducing heat transfer efficiency. Small angle: refers to the angle of ripples or folds being less than 90 degrees. Compared to large angle plates, small angle plates have a greater distance between the ripples, making them less prone to clogging. Meanwhile, small angle plates may exhibit better mechanical strength, with stronger resistance to vibration and fatigue. However, its heat transfer efficiency may be slightly inferior to that of large angle plates.
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 34
Increase the angle by a large angle 1. High heat transfer efficiency 2. High flow resistance
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 36
Large angle plus small angle 1. Medium heat transfer efficiency 2. Medium flow resistance
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 38
Small angle plus small angle 1. Low heat transfer efficiency 2. Low flow resistance
Material Classification
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 40

copper

Copper has excellent thermal conductivity, which enables efficient heat transfer and improves the heat transfer efficiency of heat exchangers. It has good processing performance, is easy to form and weld, and is beneficial for manufacturing heat exchanger components with various complex shapes and structures. It can meet different design and usage requirements, reduce manufacturing costs and production cycles
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 42

aluminium

Aluminum has a low density and light weight, which can effectively reduce the overall weight of equipment and improve energy efficiency in situations where strict weight requirements are imposed. At the same time, its cost is relatively low and it has certain economic advantages
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 44

alloy

Can manufacture high resistance and high thermal resistance materials. Materials with special properties can also be manufactured. Some have strong corrosion resistance and are suitable for the chemical industry.
Production Process
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 46
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 48
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 50
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 52
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 54

High energy efficiency ratio

Cold and hot fluids can fully exchange heat, heating the cold flow to a temperature close to the incoming heat flow, maximizing energy recovery and improving heat recovery rates. The heat recovery rate can reach up to 90%, reducing energy waste and lowering operating costs
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 56

Compact and practical

Compact structure, lightweight and portable, almost no need for special maintenance, easy installation and disassembly without dirt, low cost in the later stage
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 58

Safe and reliable

Avoiding the leakage problems that may occur with traditional gasket sealing methods, ensuring stable flow of the medium in the heat exchanger, improving the reliability and safety of the equipment, and being able to withstand the erosion of various corrosive media, extending the service life of the equipment; At the same time, it can operate stably within a wide temperature and pressure range, withstand certain high temperatures and pressures, and adapt to harsh working environments
Customized Contents
Selection factors
Consider the content
thermal load
The heat transfer required by the heat exchanger is calculated according to the heating area, building enclosure structure heat
loss and other factors
fluid media
The first side is the high temperature hot water provided by the central heating pipe network (with a small amount of corrosion
inhibitor), and the second side is the heating circulation water
Import and export temperature
The inlet and outlet temperatures of the primary and secondary fluids are determined according to the design of the heating
system, which is used to calculate the logarithmic mean temperature difference (LMTD)
rate of flow
The flow rate of primary and secondary fluids is calculated according to the heat load, fluid specific heat capacity and
temperature difference between inlet and outlet
Allow pressure drop
Considering the head of the heating system pump and the pipe network resistance, determine the allowable pressure drop of the heat
exchanger
material quality
Select appropriate heat exchanger material according to fluid medium properties
Plate type
Select the appropriate corrugated plate type according to eat transfer efficiency and pressure drop requirements
Size and connection method
Select the appropriate heat exchanger shape and connection diameter according to the installation space and the connection requirements with heating pipes
Brand and quality
Choose well-known brands in the market to ensure product quality and after-sales service
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 60
path
If you need to obtain the selection table, please pull down to get the contact information of the sales assistant
5S standardized production management
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 62
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 64
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 66
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 68
High Quality Phe Stainless Steel Brazed Plate Heat Exchanr Equipment Motor Core Farm Use New Used Condition 70
Product application areas
Mainly used in air conditioning systems, regional cooling and heating, refrigeration industries such as chemical, pharmaceutical, food, power generation, and large ships
